- Length
- 12 in
- Model
- DWS780
- Included
- Compound Miter Saw
- UPC
- 885911906913
- Features
-
- Dimensions - 35cm x 45cm x 25cm
- 1100 Watt motor designed for heavy duty applications
- Integrated CUTLINE™ Blade Positioning System provides adjustment free cut line indication for better accuracy and visibility
- Powerful 15 Amp, 3,800 rpm motor delivers extended power and durability
- Super-efficient dust collection system captures over 75% of dust generated
- Tall sliding fences support crown molding up to 7-1/2 in. nested and base molding up to 6-3/4 in. vertically against the fence while easily sliding out of the way for bevel cuts
- Exclusive back fence design cuts up to 2x14 dimensional lumber at 90° and 2x10 at 45°
- Adjustable stainless-steel miter detent plate with 10 positive stops improves productivity and ensures cutting accuracy
- Miters 60° to the right and 50° to the left providing increased capacity
- Oversized bevel scale makes bevel angle adjustments accurate and easy
- Compact, lightweight design (58 lbs.) allows for easy transport and storage
- Cam lock miter handle with detent override deliver quick and accurate miter angles
- Dual horizontal steel rails with innovative clamping mechanism and linear ball bearings deliver an accurate, durable and compact saw
- Innovative gearbox and belt-drive design increases vertical cutting capacity
- Description
-

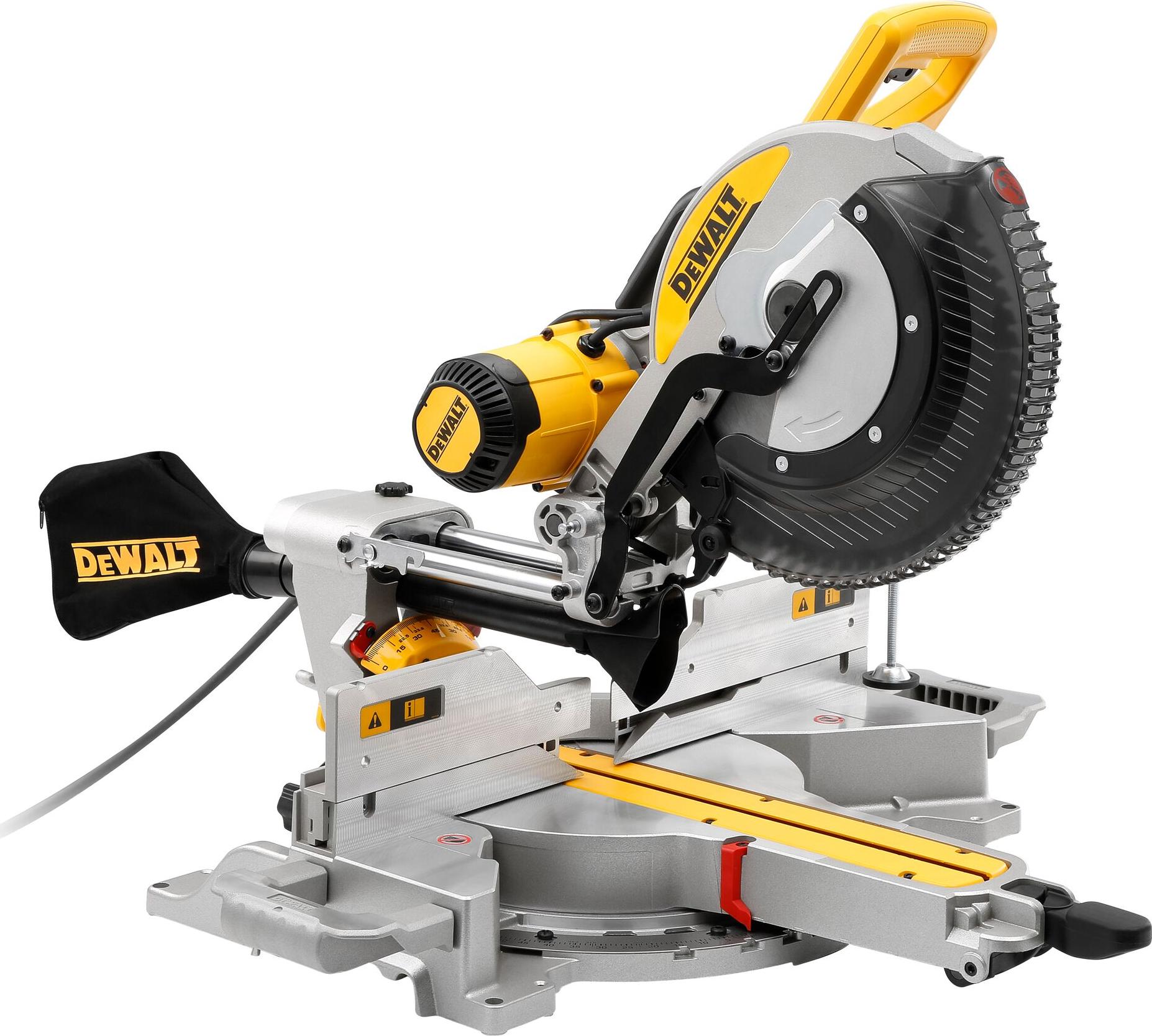

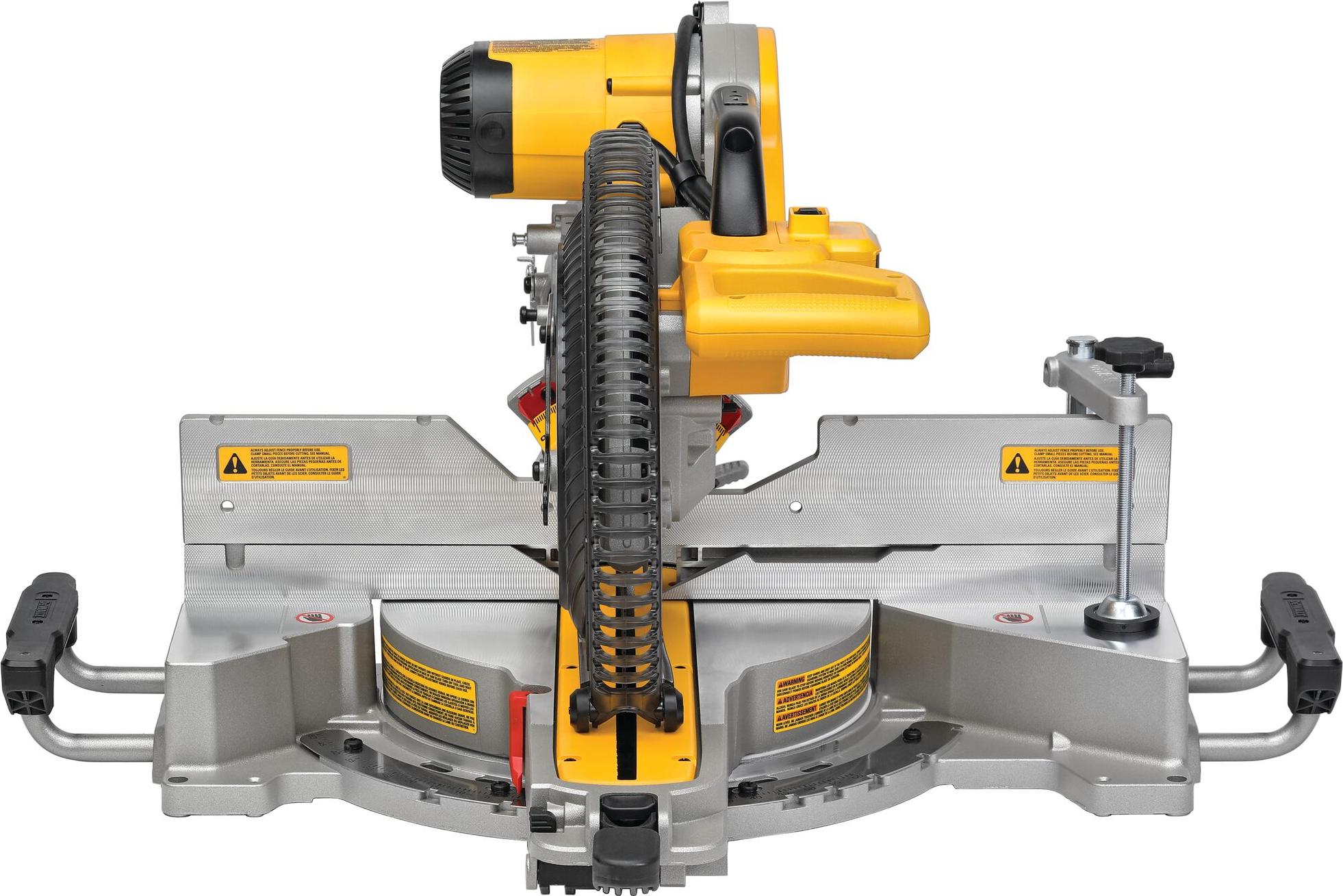

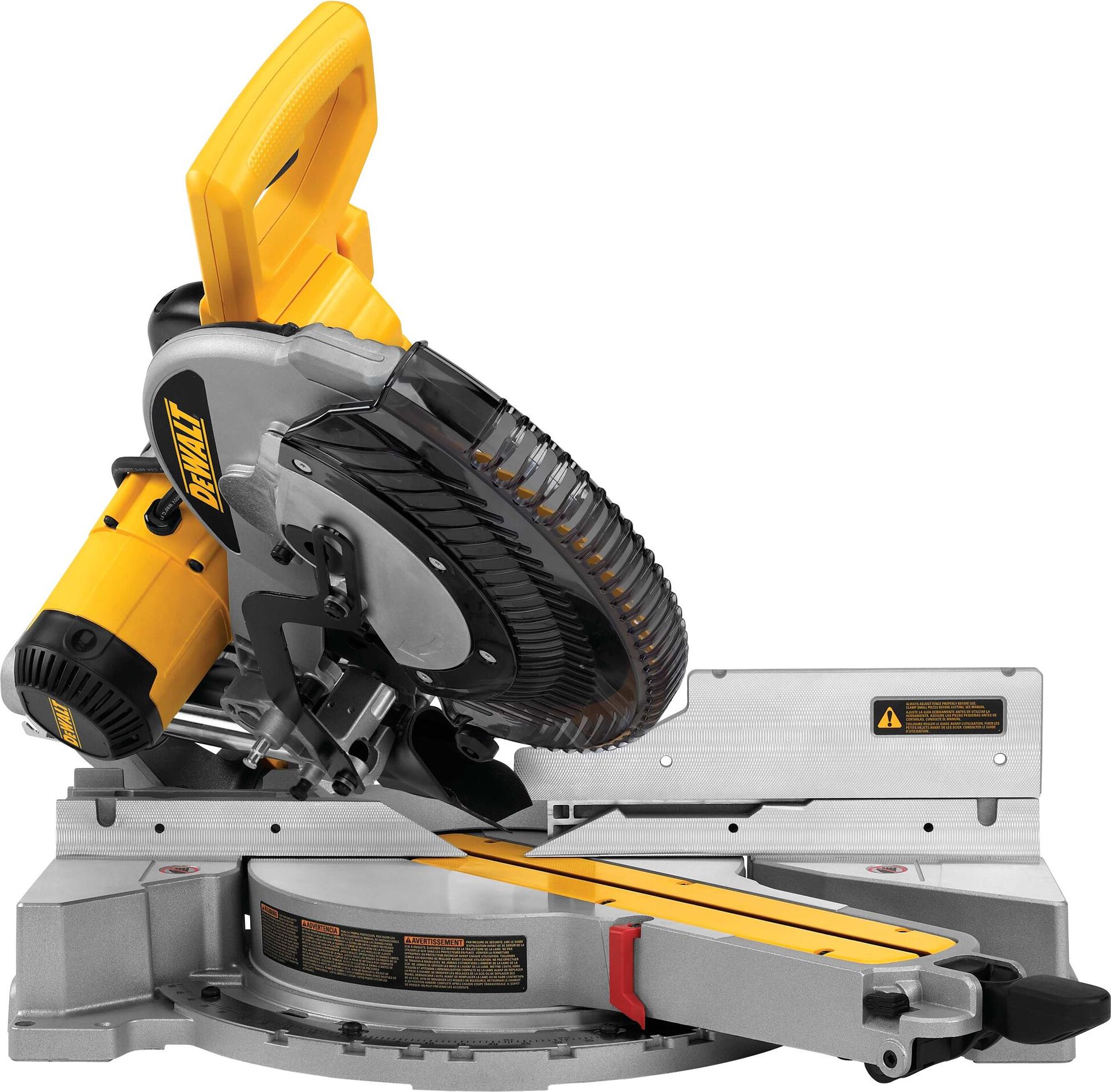

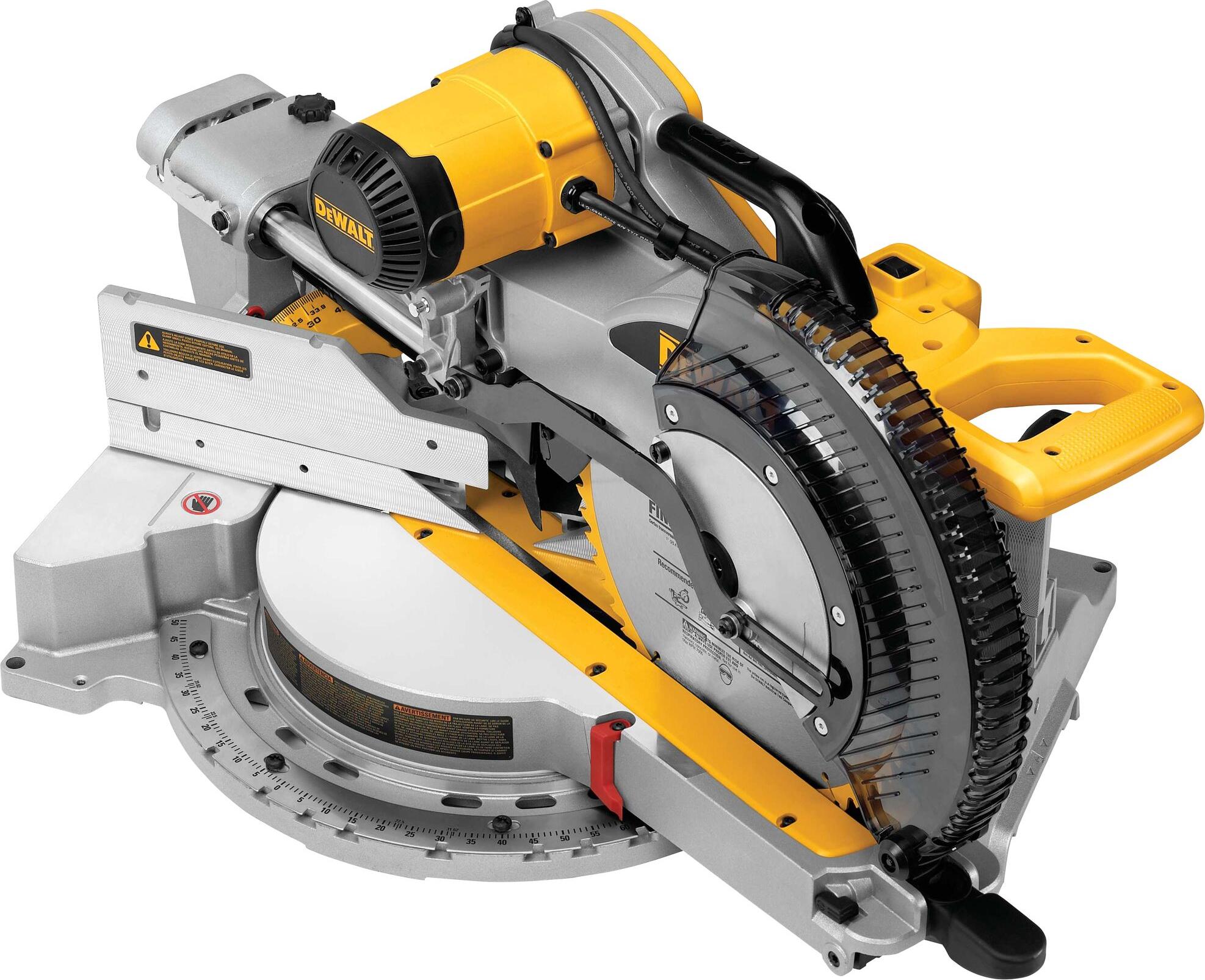

The 12 in. Double Bevel Sliding Compound Miter Saw has a 15 Amp motor and integrated XPS crosscut positioning system for adjustment-free, accurate cut line indication. Tall sliding fences support 7-1/2 in. of nested crown and 6-3/4 in. of base molding vertically. Exclusive Back Fence Design cuts up to 2x14 dimensional lumber at 90 increased miter capacity of 60 (R) and 50 (L) features durable stainless-steel miter detent plate with cam lock for repeatable accuracy with easy adjustments.
